Powerful, Intelligent Solutions

Powerful layout and design tools to make you more efficient and productive

Schematic Capture

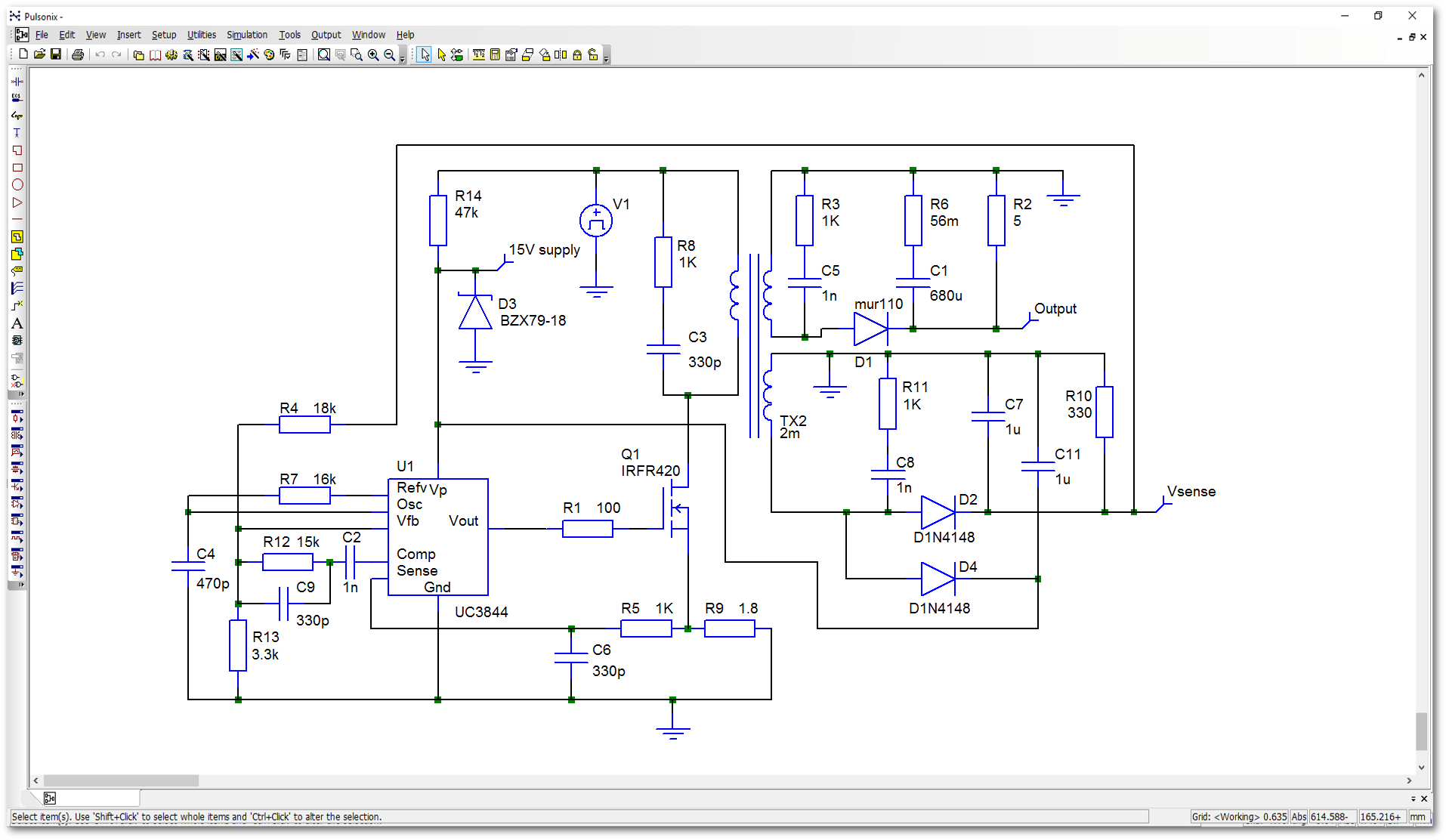

Create clear and concise schematic drawings in this easy-to-use design environment. No tedious menus or commands to navigate with modeless operation and an intuitive user interface.

Multi-level Hierarchical Design: Facilitating the re-use of commonly used circuit elements using pre-defined blocks.

Electrical Rules Checking: Electrical rules checking Online as you design and as an interactive batch ensure your design rules are adhered to at all times during the circuit creation.

Instant Cross Probe: Cross probe bi-directionally between your Schematic and PCB designs to ensure design accuracy and correctness.

PCB Layout

The Pulsonix PCB Design environment has been carefully designed to ensure maximum productivity from minimal engineer input time.

A wide range of features from Rule Creation, Component placement, Routing modes and post processing capability allow for a critical reduction in your design time.

Import Filters: the industry's largest import filters allowing you to retain your Intellectual Property for both Designs and Libraries.

Design Variants: complete assembly variants for your design requirements.

Push aside Routing: interactive push aside routing allows for easy routing on dense board layouts.

High-Speed Design

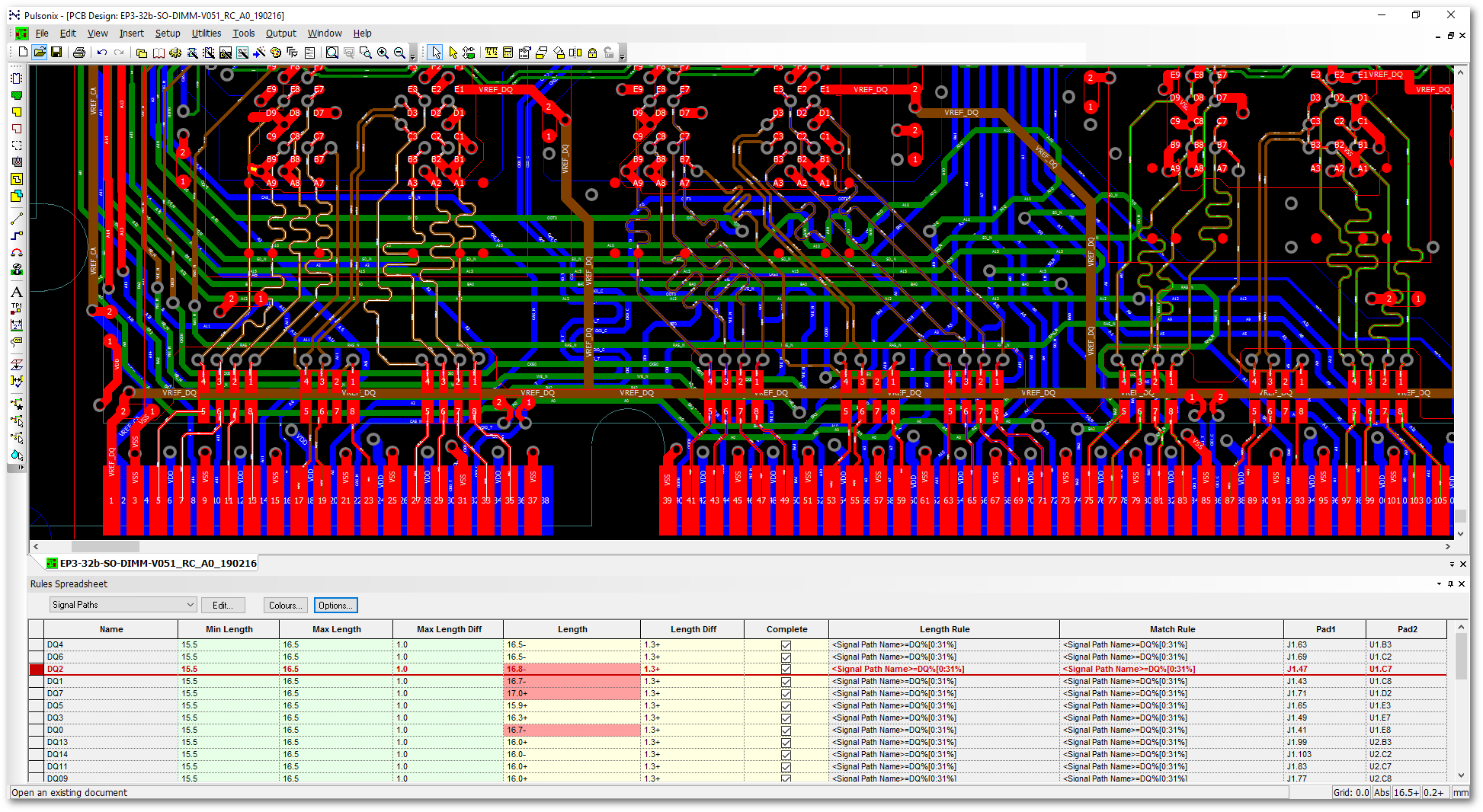

Pulsonix supports a powerful set of constraint driven, rules based, interactive High-Speed design features. With the High-Speed features being driven from the Schematic, the design can be conceived and defined by the engineer during the early logical capture phase. All constraint rules are passed to the PCB design automatically.

Constraint Driven Design Rules: Define critical High-Speed Design rules which must be obeyed in the layout stage.

Signal Paths: Signal Paths enable you to create specific paths that require special consideration within the design, essential for DDR, USB and PCI Express designs.

Serpentine Routing: interactive addition of lengths to traces using the design rules defined.

Advanced Technology

Pulsonix provides advanced technology features for your modern design requirements.

Flexi-Rigid Design: True Flexi-Rigid support through multi-spanned Layer Areas, Board Outlines, Board Cutouts and Layer Spanned components allow you to achieve your advanced design requirements with ease.

Support for burried Components: support for burried physical components on into cavities within layer substrate of the board.

Chip-On-Board Support: allows for creation and annotation of die & bond pads and bond wires automatically and interactively within the design.

True manufacturing outputs for your advanced technology usage: critical checking, reporting and manufacturing outputs for designs using specialist technology.

Pulsonix Vault

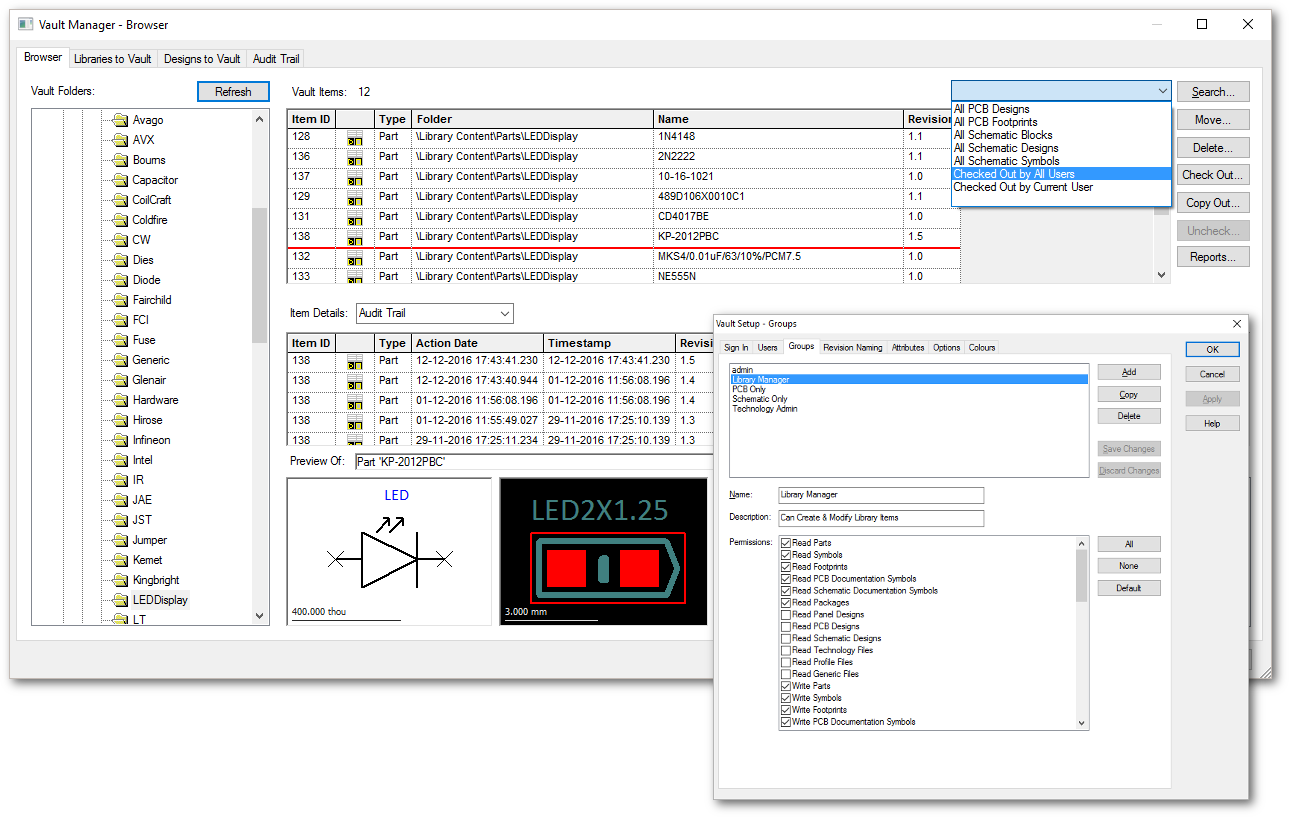

The Pulsonix Vault enables true revision and access controls over your Schematic Designs, Hierarchical Blocks, PCB Designs, Panels, Technology Files and Pulsonix Libraries.

This allows you to use known and verified data in a controlled manner, ensuring accuracy and reducing time to market by not needing to verify items each and every time you use them in your designs.

By its nature, the Pulsonix Vault leads to collaborative working by ensuring no two users can be accessing and amending the same data at the same time.

Database Connection

The Pulsonix Data Connection ("PDC") enables instant access to corporate information systems for rapid identification and selection of components.

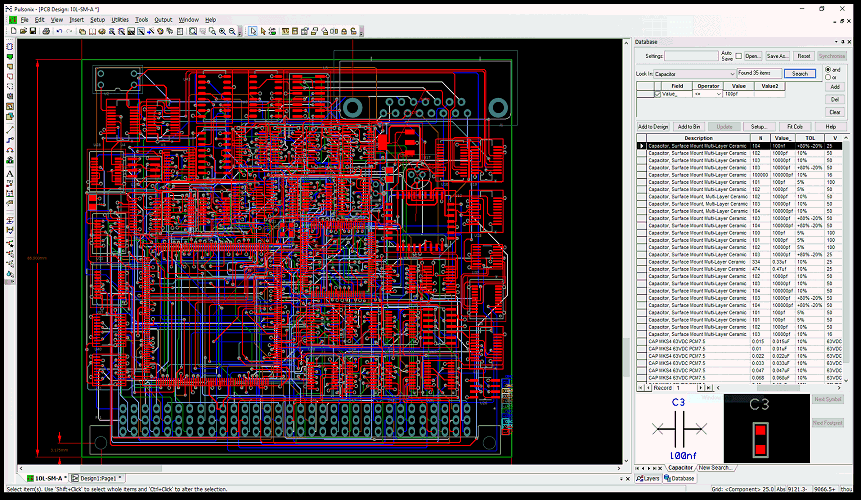

This enables you to carry out database-driven part selection and management inside the Pulsonix design environment where you need the information exactly where you need it.

PLM Connection

The PLM product interface (or a middle-tier application between the PLM system and the various individual tools) allows access to documents and other design data in a controlled manner, so that all actions fit with the design flow defined by the PLM system. Each process or product requires its own PLM interface to enable the PLM tool's 'hooks' to access information within it.

Data Migration

The largest array of Import Filters of any EDA product, import Designs and Libraries from your current system into Pulsonix and retain your Intellectual Property.
